The World's Best Cinema-Grade LEDs at Your Fingertips

Monolith Studios has the largest supply of ROE Black Pearl 2 Version 2 in the world — cinema-grade LED panels that pass the muster of the top studio blockbusters and award-winning shows.

Monolith also provides the renowned ROE CB5 LED panels for use in conjunction with or separately from the BP2v2 panels. Let Monolith Studios customize a solution that fits the exact needs of your production.

-- Monolith Studios --

The Highest Color Accuracy Available.

Higher Refresh Rates

High refresh rates help to avoid visible scan-lines. Monolith’s BP2V2 has a refresh rate of 7680 Hz for optimal cinema projects. Our panels minimize the scanning artifacts by having a high refresh rate in combination with a low scan rate.

Best Components

Our panels have a magnesium frame for durability. The integrated magnet-assisted assembly, LED protection and smart lock system allow for automatic positioning and efficient installation. These features guarantee optimum panel protection during build and break.

On-Camera Optimized

True-to-content effects through outstanding color processing and great contrast ratios. Our screens work with high-end components and state-of-the-art driver ICs; making all the difference for the on-camera performance.

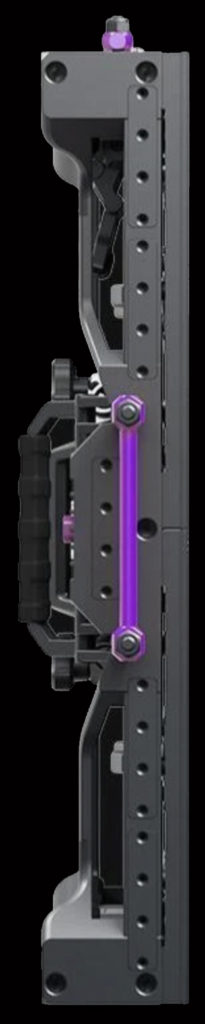

About the ROE Black Pearl 2 Version 2

Monolith’s Black Pearl BP2 is specially-developed for use in the film industry and xR applications. Featuring in large-scale film projects, such as The Mandalorian and Westworld, its features have been adapted based on extensive testing and industry partners’ feedback.

Creating the right canvas for virtual production is not just building any LED screen. It’s where the LED panel, processing, and camera work together, complement and strengthen each other that real stunning results are achieved. ROE Visual Black Pearl has proven to be the right product for the job.

The BP2V2 offers the trusted performance of the BP2 in an updated version with high-speed components. It improves on the on-camera performance of the BP2, adding better color management as well as quicker and easier camera set up and handling.

BP2v2 Specifications

Pixel Pitch	2.84 mm
Max Brightness Calibrated	1,500 nits
Panel Dimensions	500 x 500 x 90mm; 19.69” x 19.69” x 3.54”
Panel Resolution (H x V)	176 x 176
Weight per Panel	9.35kg; 20.61 lbs
Power Consumption Max/Average	185W / 92W
BTU Max/Average	631 / 290
Transparency	Solid
Serviceability	Front
Max. Hanging (panels)	20
Max. Stacking (panels)	12
Curving	Concave 0°~10°
LED Configuration	SMD 1515 Black
Viewing Angle Horizontal	140°
Viewing Angle Vertical	140°
Multiplexing	8
Refresh Rate	7680Hz
Greyscale	16 bit
Frame Material	Magnesium Alloy
Operational Temp / Humdity	-20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
Storage Temp / Humidity	-40°~ 60°C, 10~90% RH / -40°~140°F, 10~90% RH
IP Rating	Indoor
Certifications	CE, ETL, FCC

The World's Best LEDs -- Available Today for Your Project

We've got the right LED product for your next virtual production, live broadcast, advertising, and creative media project.

Monolith LED Rentals

The Largest Inventory Available to Rent

De-risk your next virtual production project by ensuring you have guaranteed access to quality LED panels. We own our own panels — no subcontracting out like some competitors.

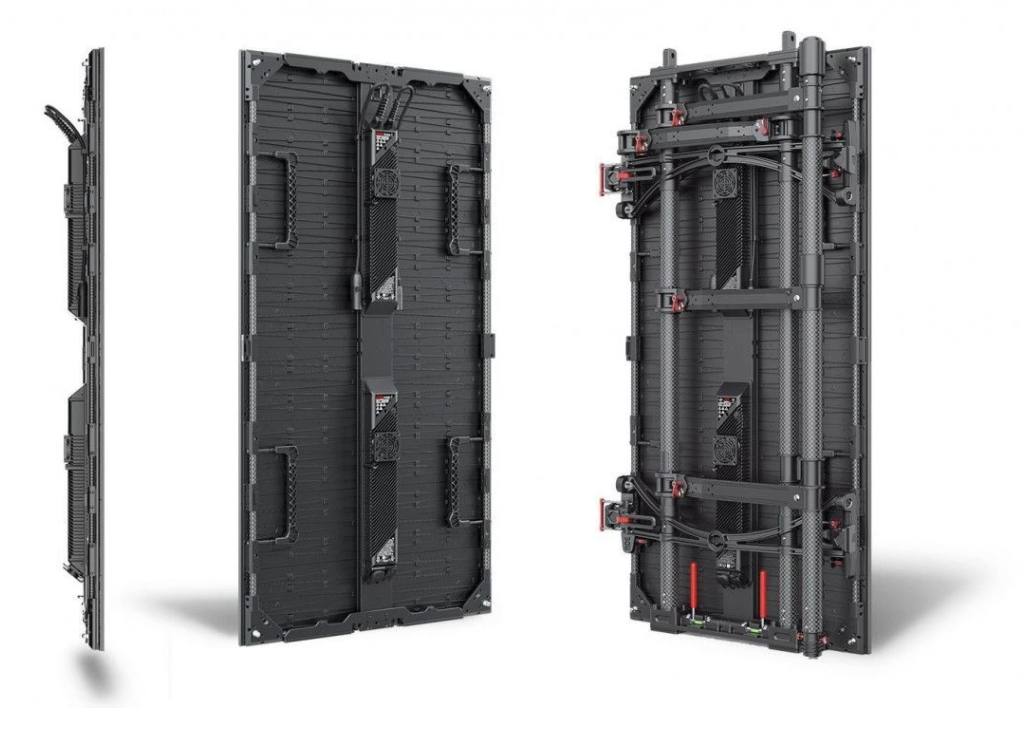

About the ROE CB5

Monolith’s CB5 product has excellent brightness, high quality black or white LED and a low selfweight make the Carbon series LED panels the perfect solution for touring, sports or events applications, where large videowalls need to be built quickly.

• LED ceiling capability through our durable hanging system

• Lighting panels for virtual production sets

• Sports Events and Live broadcast

• Festivals

• Indoor and Outdoor Advertising

CB5 Specifications

Pixel Pitch	5.77 mm
Max Brightness Calibrated	4,500 nits
Panel Dimensions	600 x 1200 x 77 mm; 23.6” x 47.2” x 3.0”
Panel Resolution (H x V)	104 x 208
Weight per Panel	13.85kg; 30.53 lbs
Power Consumption Max/Average	650W / 325W
BTU Max/Average	2218 / 1020
Transparency	Solid
Serviceability	No
Max. Hanging (panels)	12
Max. Stacking (panels)	5
Curving	Concave 15°~Convex 10°
LED Configuration	SMD 1921 Black HB
Viewing Angle Horizontal	140°
Viewing Angle Vertical	110°
Multiplexing	4
Refresh Rate	3840Hz
Greyscale	16 bit
Frame Material	Carbon Fiber and Magnesium Alloy
Operational Temp / Humdity	-20°~ 45°C, 10~90%RH / -4°~113°F, 10~90%RH
Storage Temp / Humidity	-40°~ 60°C, 10~90% RH / -40°~140°F, 10~90% RH
IP Rating	Outdoor
Certifications	CE, ETL, FCC
